Red Lion 617038 6RLAG-3TT Aluminum Trash pump

SKU: 617038

6RLAG-3LTT ALUMINUM TRASH PUMP

APPLICATIONS

Ideal for high volume water transfer and construction grade dewatering applications. Can handle liquid slurries containing sand, small rocks, and other debris less than 1-1/4" in diameter.

FEATURES & BENEFITS

Powered by 208cc 4 stroke air cooled OHV engine
Removable aluminum outer casing with cast iron inner volute and impeller for durability
Silicon carbide seal for abrasion resistance and trash application
Handles up to 1-1/4" solids
Includes heavy-duty roll frame
EPA certified
Repair kits available

Product Info

Model	UPC	Item Number	CC	Intake	Discharge	Suction Lift	Max Height	Max Flow	Fuel Tank	Engine
6RLAG-3LTT	0 10121 14507 8	617038	208	3" NPT	3" NPT	25'	75'	285 gpm	3.8 qt	Air cooled 4 stroke 208 cc OHV

Carton Specifications

Model	Length	Width	Height	Weight (lbs)	Carton Cubes (cu ft)	Pallet Quantity	Qty. per Layer	Layers per Pallet
6RLAG-3LTT	19.5"	23"	18.5"	95	3.74'	8	4	2

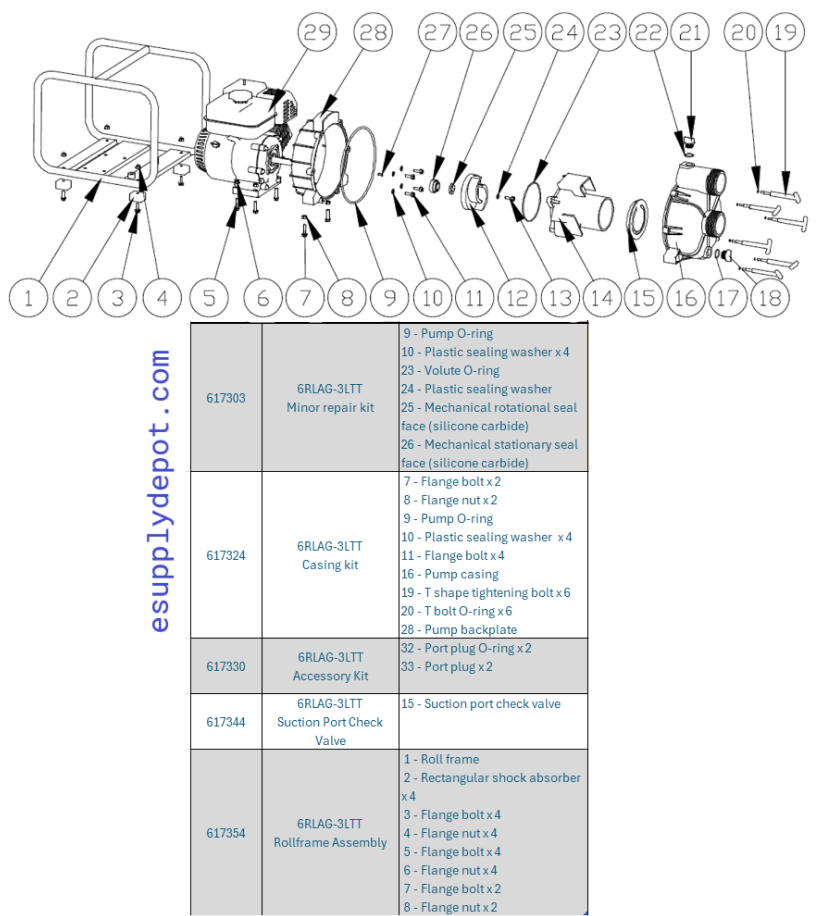

Replacement Parts Kits:

617303 Mechanical Rotational & Stationary Seal, Seal Ring
617324 Pump Casing, Backplate, T-Bolts, Hardware & O-Rings
617313 Repair Kit, Volute,Seal, Impeller Seal Ring
617330 Drain Plug
617354 Roll Frame with Hardware

617344 Flapper (check valve)
